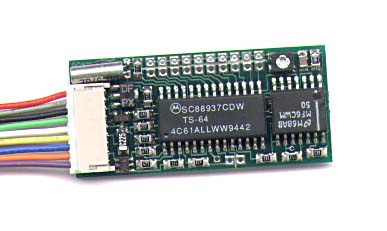

TS-64
Microminiature CTCSS Encoder-Decoder

Features:

• The latest and smallest programmable CTCSS encoder-decoder for use in FM transceivers.

• Select from 64 preset CTCSS tones between 33.0 Hz and 254.1 Hz using six PCB jumpers.

• Tone stability is crystal controlled with an accuracy of better than 0.05 Hz.

• The time-out timer may be programmed to eight different intervals.

• Receiver High Pass filter and busy channel lockout are included.

• Generates "Reverse Burst" and P.T.T. Delay for squelch tail elimination.

• Hookup is made with color coded wires, microminiature plug and socket.


$54.95

Specifications:

• Size .78" X 1.70" X .25"

• Operates from 6.0vdc to 20.0vdc @ 8ma.

• Decode sensitivity is 15mv. RMS

• Operating temperature range is -30°C to +60°C.

• Encode output level adjusted from 0v to 3.0v.

• Squelch control transistor can either be switched ON or OFF with PCB jumper.


---

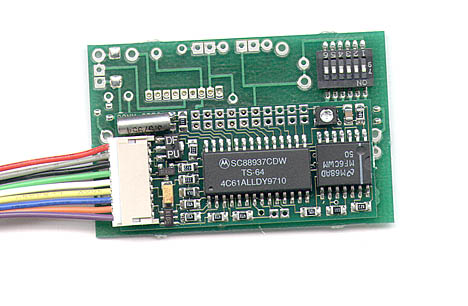

TS-64ds

$57.95



TS-64 Instructions  |  Application information

---
