COMMUNICATIONS SPECIALISTS

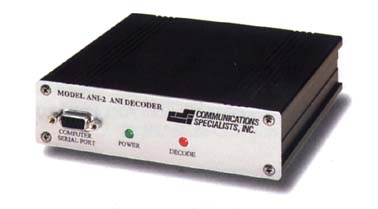

ANI Station Decoder
Specifications:
- Powered by 10-18 VDC @ 75ma.
- ANI digits programmable for 2-8 digits + 1digit status.
- Decodes from receiver audio input.
- Data rate up to 125ms per tone, analog modulation, EIA tone set protocol used.
- Message duration less than 150ms for 1000 number system capacity.
- Input level impedence 35K ohms, AC coupled.
- Temperature range is -40° C to +70° C.
$299.95 NO LONGER AVAILABLEFeatures:
- Microprocessor based product used in ANI systems, alarm monitoring and remote status systems.
- ANI-2 station decoder displays 100 received messages on grid from ANI-1 encoder.
- Case size 5.4" X 5.8" X 1.4" with DB-9 connectors for easy interface to receiver & computer.
- Uses real time clock for time and date message stamping.
- Software Alarm for signaling events that occur during your work day.
- Incoming unit ID and status messages decoded and displayed with Windows 3.1 or Windows 95.
- Decode input level is the only user required adjustment.
- Full 1 year warranty when returned to the factory for repair.
- Immediate 1 day delivery.
