ANI-1

Programmable A N I Encoder

Specifications:

• Powered by 6-18 VDC @ 3.5ma, operating temperature range is -40°C to +70°C.

• ANI digits programmable from 2 to 8 digits plus 1 status (00-99999999).

• Message duration is shorter than 150ms for 1000 number system capacity.

• Data rate is 37ms per tone, EIA tone set protocol used.

• PTT ANI (programmable) on PTT closure, PTT release, PTT closure & release, and application of power.

• Front porch delay adjustable from 0-9.99 seconds in 18 millisecond intervals.

• Repeat timer delay adjustable from 0-99 seconds in 1 second intervals.

• Active low PTT input, PTT output, plus programmable AUX input and Busy-Trunk input.

• Immune to RF.



$49.95

Features:

• ID and status messages can be decoded and displayed on computer using ANI-2 decoder.

• ANI-1 eliminates the need for voice communication and conserves valuable air time.

• Microprocessor crystal controlled for high accuracy, nonvolatile EEPROM memory.

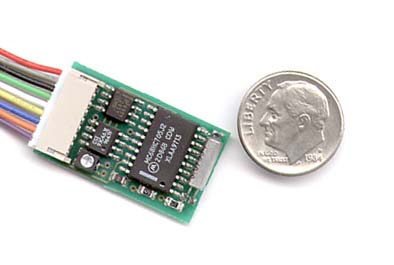

• Microminiature size is only 1.13" X .66" X .22" high with connector.

• Automatic radio Number Identification, alarm monitor, and remote status configurations.

• Digital filter in ANI-2 Decoder allows ANI-1 to operate in poor signal to noise environments.

• ANI-1 analog transmission will pass over links and repeater systems.

• Programmable by computer using Windows 3.1 or Windows 95 operating system.

• Easy interface with 9 conductor color coded plug-in cable.

• Immediate 1 day delivery with 1 year warranty when returned to the factory for repair.





---
